Macor Machinable Glass Ceramic

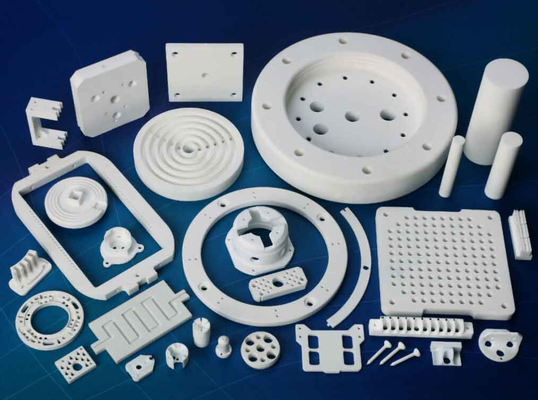

Image Grand : Macor Machinable Glass Ceramic

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	ZG
Certification:	CE
Numéro de modèle:	MS

Conditions de paiement et expédition:

Quantité de commande min:	1 pièce
Prix:	10USD/PC
Détails d'emballage:	Boîte en bois forte pour l'expédition mondiale
Délai de livraison:	5-8 jours ouvrables
Conditions de paiement:	LC, D/A, D/P, T/T, Western Union, MoneyGram
Capacité d'approvisionnement:	1000 pièces

Contact

Macor Machinable Glass Ceramic

description de

Mettre en évidence:

Macor machinable glass ceramic

Machinable ceramic with high temperature resistance

Glass ceramic for precision machining

Macor Machinable Glass Ceramic

Macor machinable glass ceramic has the versatility of a high performance polymer, the machinability of a metal, and the performance of an advanced technical ceramic. It is a hybrid glass-ceramic and offers a unique combination of properties from both families of materials. Macor is an excellent electrical and thermal insulator, and offers good performance in high temperature, vacuum, and corrosive environments.

One of the main advantages of Macor is that it can be machined with conventional metalworking tools. This allows for significantly faster turnarounds and substantially lower production costs when compared with other technical ceramics, making it an excellent material for both prototyping and medium-volume production runs.

Advantages

Can be machined with normal metalworking tools
Strong and rigid; unlike high temperature plastics, Macor will not creep or deform
Low thermal conductivity; useful high temperature insulator
Electric insulator, especially at high temperatures
Excellent with high voltages and a broad spectrum of frequencies
Does not require firing after machining
Continuous use temperature of 800°C; Peak temperature of 1000°C
Zero porosity
Won’t outgas in vacuum environment
Very tight machining tolerances of up to 0.0005in (0.013mm)
Excellent dimensional stability in a variety of environments (heat, radiation, etc.)
Radiation resistant
Coefficient of thermal expansion readily matches most metals and sealing glasses

Applications

Precision coil formers (high precision and dimensionally stable)
High voltage insulators (smooth surface finish and unaffected by arcing)
Spacers, cavities and reflectors in laser assemblies (precision finish and heat resistant)
Thermal breaks in high temperature processing equipment
Coil supports and vacuum feed-throughs (vacuum stable and hermetically sealable)
Retaining rings on hinges, windows and doors of NASA’s Space Shuttle
Supports and components in several satellite borne systems (thermally and electronically insulating)
Fixtures and reference blocks in power generation units (dimensionally unaffected by irradiation)

Mechanical Properties

Macor machinable glass ceramic is strong and rigid. It has zero porosity and can be polished to a smoothness of 0.5µin.

Thermal Properties

Macor will not creep or deform like high temperature plastics. It has low thermal conductivity, which makes it useful as a high temperature insulator. Macor has excellent dimensional stability in a variety of environments (heat, radiation, etc.). It’s coefficient of thermal expansion readily matches most metals and sealing glasses.

Electrical Properties

Macor machinable glass ceramic is a good electric insulator, especially at high temperatures. It works excellent with high voltages and a broad spectrum of frequencies. It is also radiation resistant.
